Holography Diode Laser

  • Integraf red holography diode laser

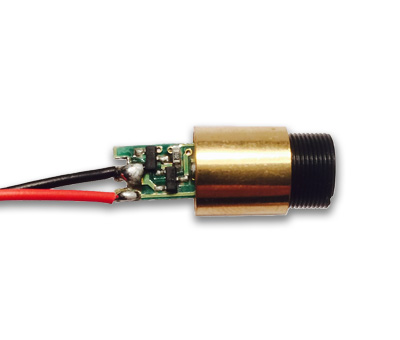

  • Integraf holography diode laser with lens

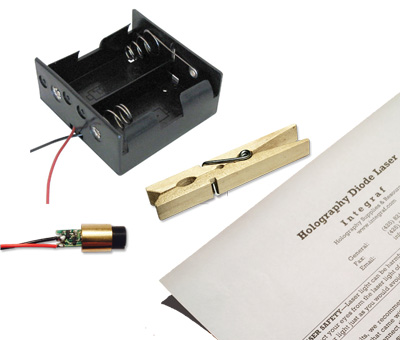

  • Integraf holography diode laser with battery holders

With an adjustable collimating lens, this 4mW holography diode laser makes it easy to make holograms up to 4"x5" (102x127mm) in size. Fully tested to meet the critical specifications required for holography.

Item #DL-4B


Well-Designed for Making Holograms

  • Adjustable collimating lens, so there's no need for a separate beam spreader
  • Unique circuit design provides stable output required for holography
  • Coherence length of 1 meter or more
  • Flexible for mounting in any direction

This holography diode laser is among our most popular items used by teachers, students, and hobbyists. A Class IIIa laser, it has an 4mW output comparable to common laser pointers, and is appropriate for making holograms up to 4"x5" (102x127mm) in size.

The laser sports an adjustable collimating lens, so there's no need to purchase separate diverging lenses, beam splitters, or mirrors to make basic holograms (see our article "Simple Holography"). Each laser also comes with a battery holder (D-size batteries not included), and does not require any other power supply or controller.

Our diode lasers have been fully tested to ensure they meet the critical specifications required for holographic recording, including single-mode stabilized output frequency, coherence length, polarization, and wavelength.

IMPORTANT: Laser light is a recognized eye hazard. Never look directly into any laser beam or its reflection.

Characteristic Specification
Wavelength 650nm (red)
Polarization Linear 100:1 typical
Max. Ambient Temp. 40°C (104°F)
Operating Voltage 2.8Vdc to 4.0Vdc
Operating Current 50 - 65mA
Beam Divergence < 1.3 mRad
Output Power Up to 4.0mW (Class IIIa)*
Power Source 2 D-size batteries (not included)
Other Adjustable/removable lens

*Actual output (mW) for each laser may vary and is typically 15-25% lower than the manufacturer disclosed level due to differences in power source, recommended use, and other factors.
